TCP 3D Robot Calibration System

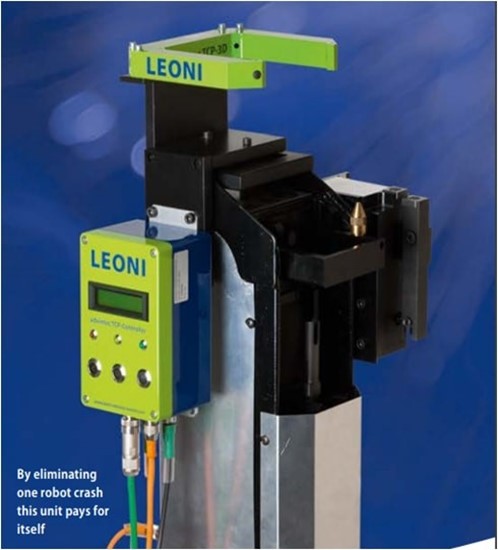

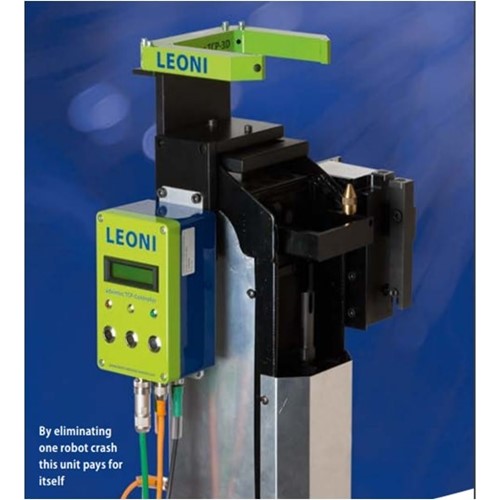

Advintec TCP Robotic Calibration System

The challenge
Continually securing the correct operating position for fixtures and robotic tools such as welding torches and milling tools.
The solution

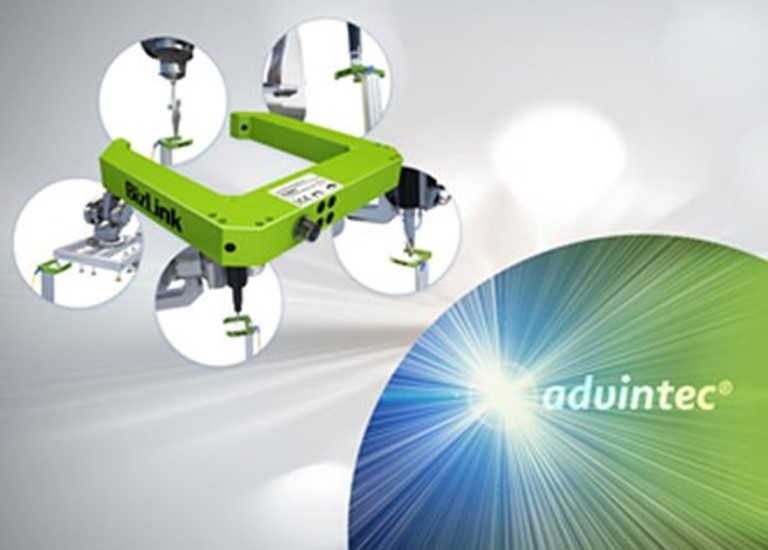

The Advintec TCP tool calibration system calibrates the tool or fixture electronically in up to six dimensions. The robot program is automatically corrected by the measured variations and ensures that the tool always operates at the correct position. Advintec TCP is a high-precision calibration system that can be used for all robot types and most robotic tools, making it independent of specific manufacturers.

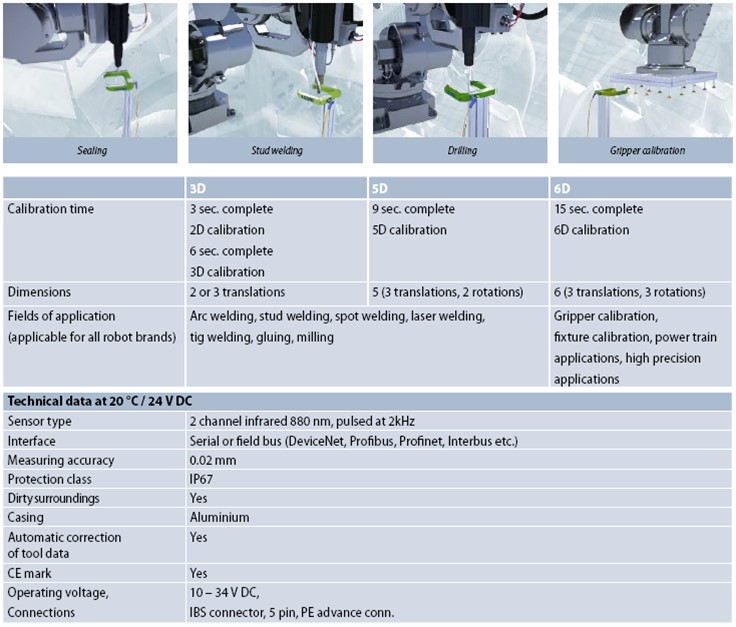

Your benefit
Correction takes place directly and automatically in the ongoing production process.

Advantages at a glance
  • Automatic absolute calculation of robotic tools and fixtures
  • Auto-commissioning and ease of use
  • Simplified Integration in the production line due to small footprint
  • Robust sensor available in two sizes
  • Multi-sensor-system (connection of additional sensors possible)
  • Connection of the calibration system to the robot controller, i.e. the calibration procedure takes place in an evaluation unit and transfers correction values to the robot controller
High process reliability
No additional PC‘s required
Logging of calibration data
Data evaluation possible at all times
Automatic correction of the trajectory due to wear and tear or tool-replacement
100 % quality assurance
Reduction of costs
Prevents the production of defective parts
Reduces scrap and rework
Short setup times
