CABLE PROTECTION

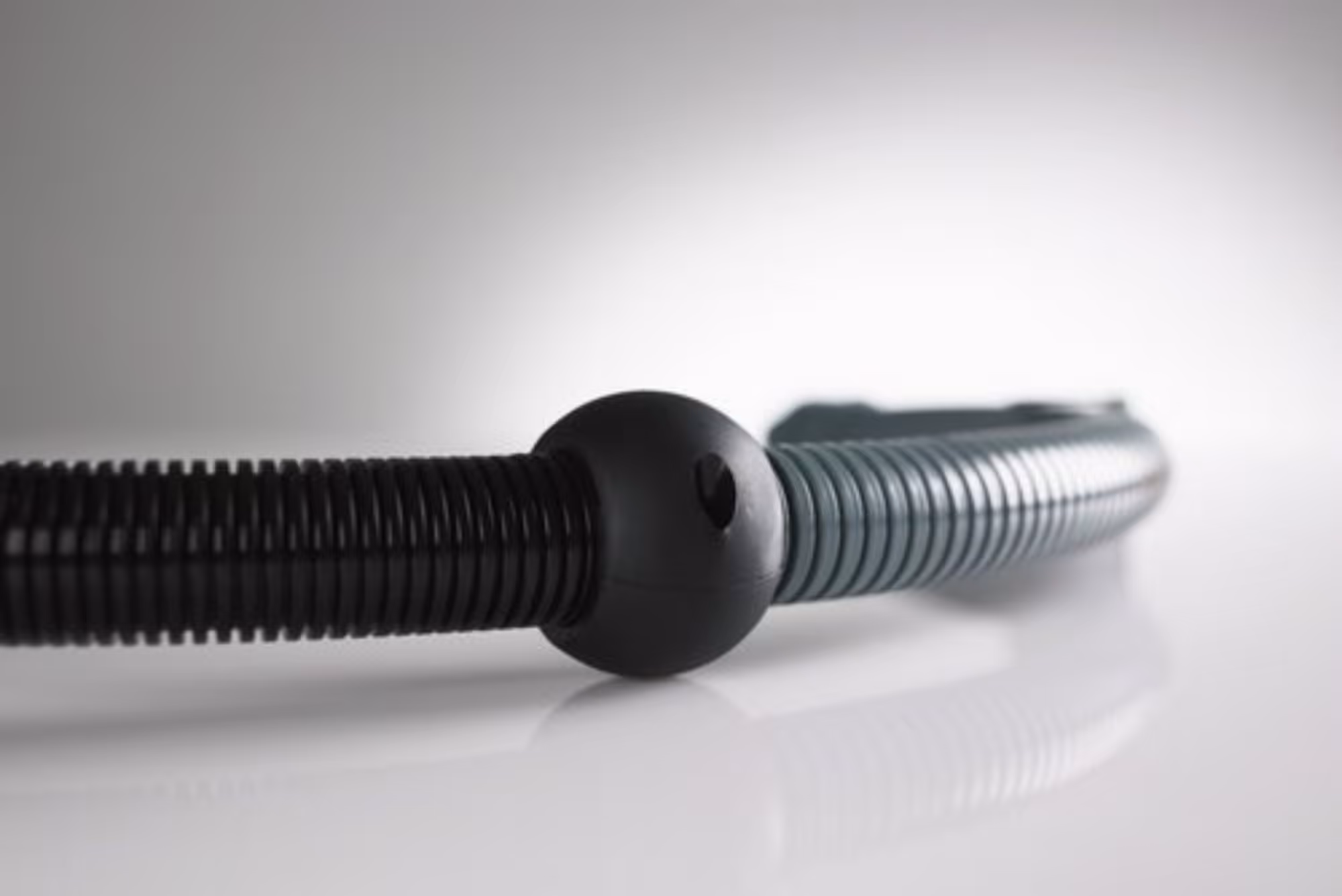

Polyamide Cable Protection

Cable protection systems made of polyamide for static and dynamic applications form REIKU's core business — where they rank among European market leaders.

Especially in robotics, REIKU has positioned itself as a premium supplier, realizing new possibilities through innovation. Even with aggressive, dynamic robot movements, their systems deliver unmatched stability and the shortest assembly times thanks to completely tool-free assembly.

Based on intensive consultation, REIKU tailors systems — from corrugated pipes and connection fittings to fastening elements and complete dresspack assemblies — precisely to your requirements.

Static To Extremely Dynamic Cable Protection

Select the Category:

Corrugated Hoses

Corrugated pipes shield the internally routed lines from external influences and protect them from damage.

This increases the service life of the hose assembly. Solid and impact-resistant plastics are used which, on the one hand, withstand pressure and impact loads and, on the other, exhibit low abrasion and thus low wear due to rubbing, squeezing and scratching. For particularly stressed areas, additional wear parts are provided to protect the corrugated tube from punctiform damage and allow easy replacement without having to renew the entire hose assembly.

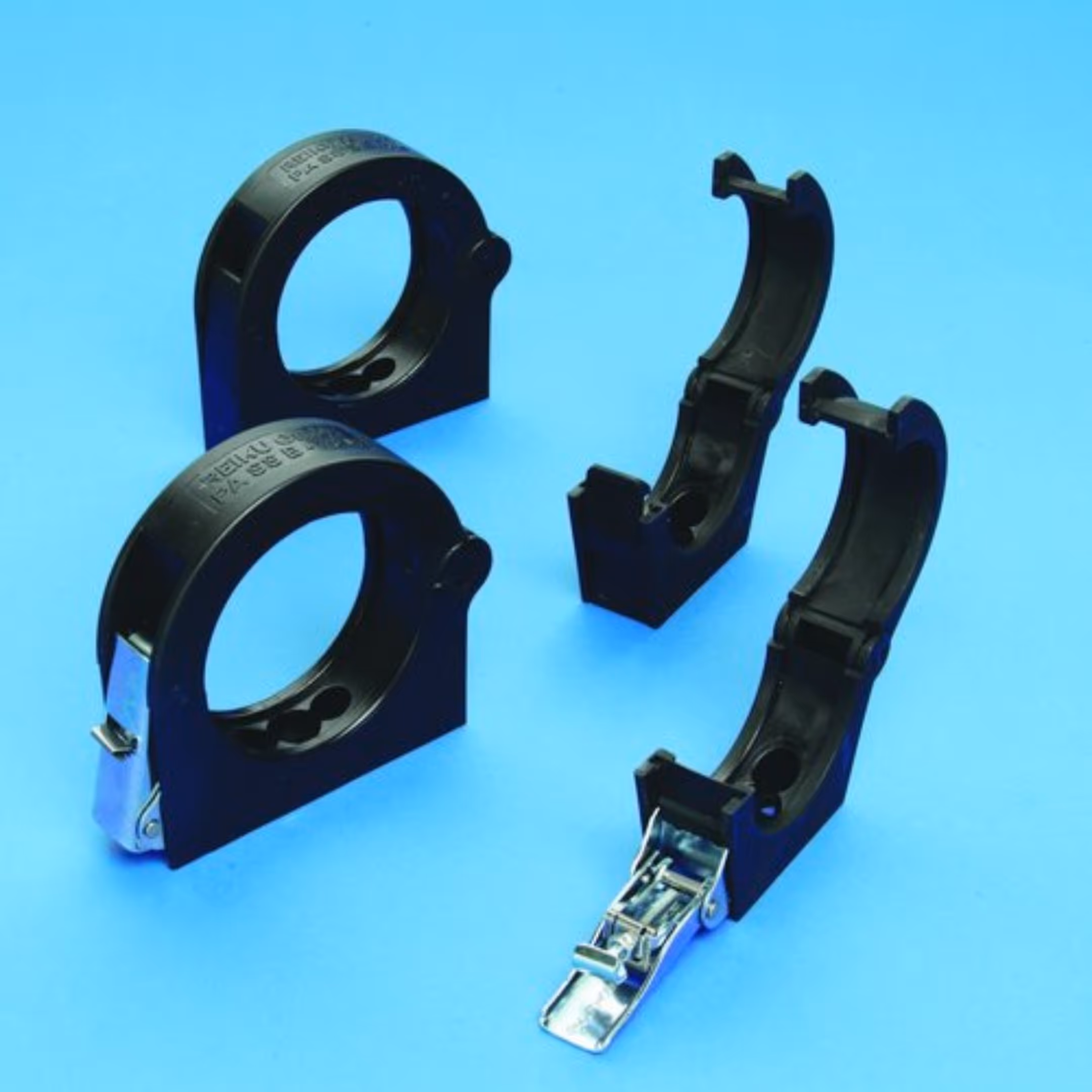

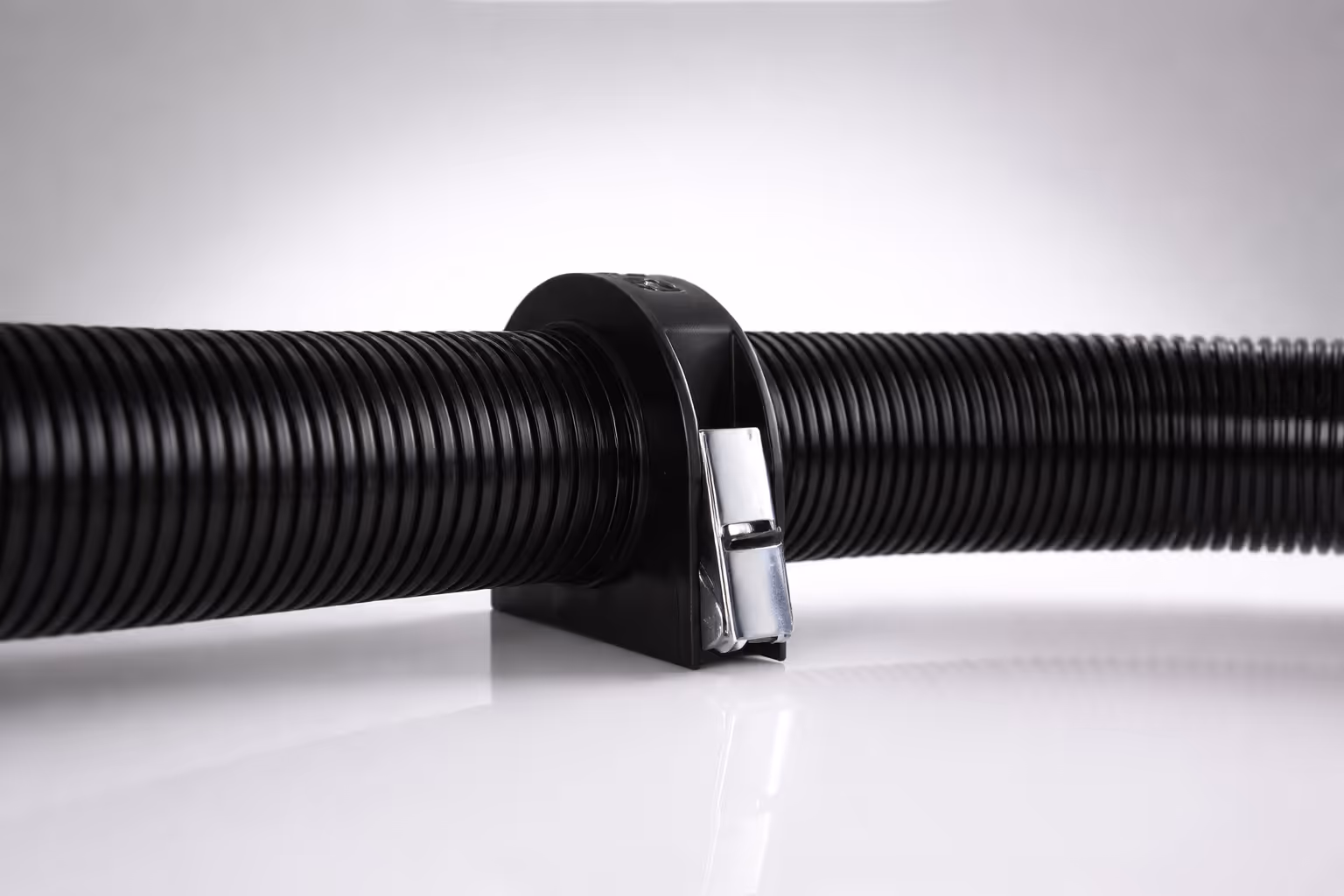

Gripping Clamps

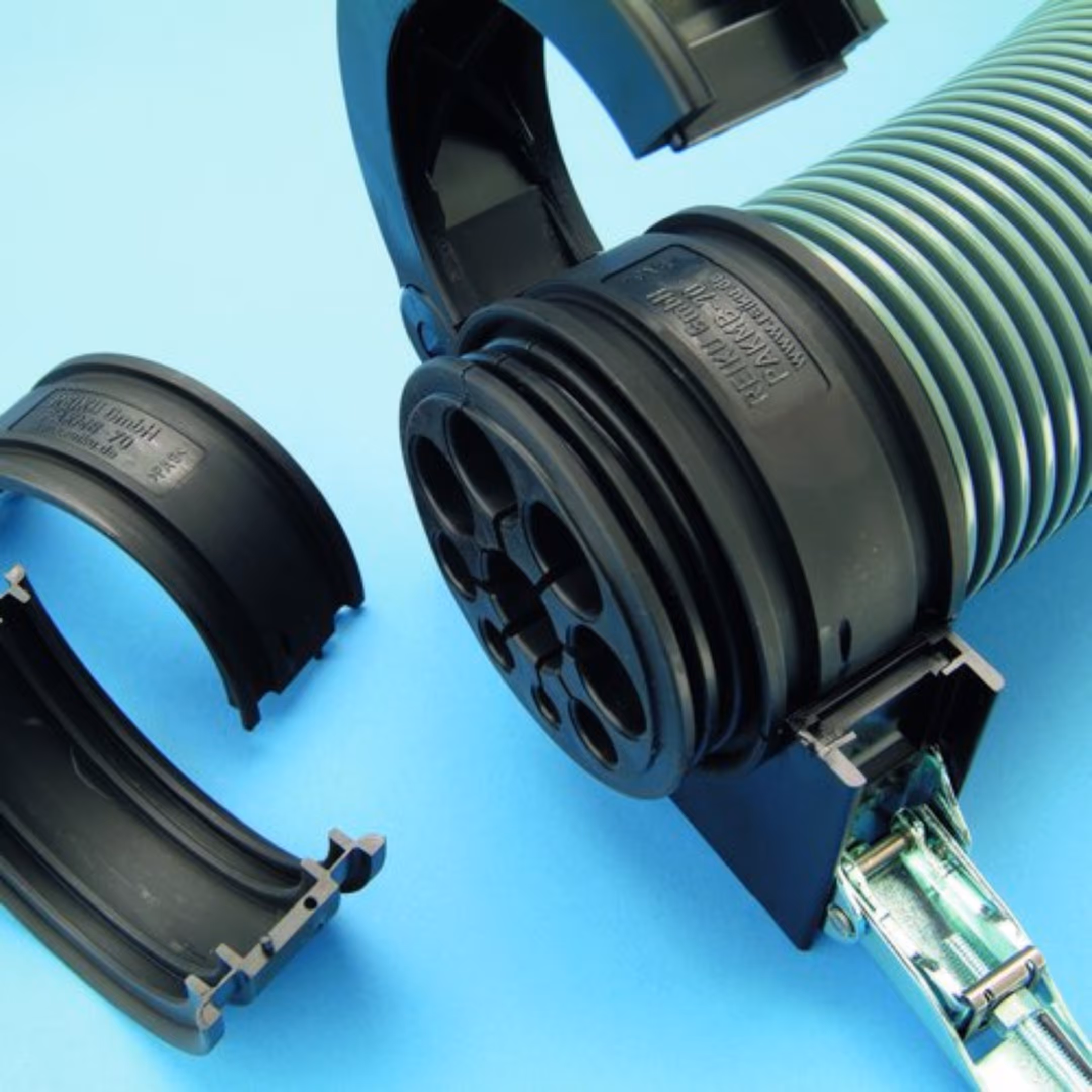

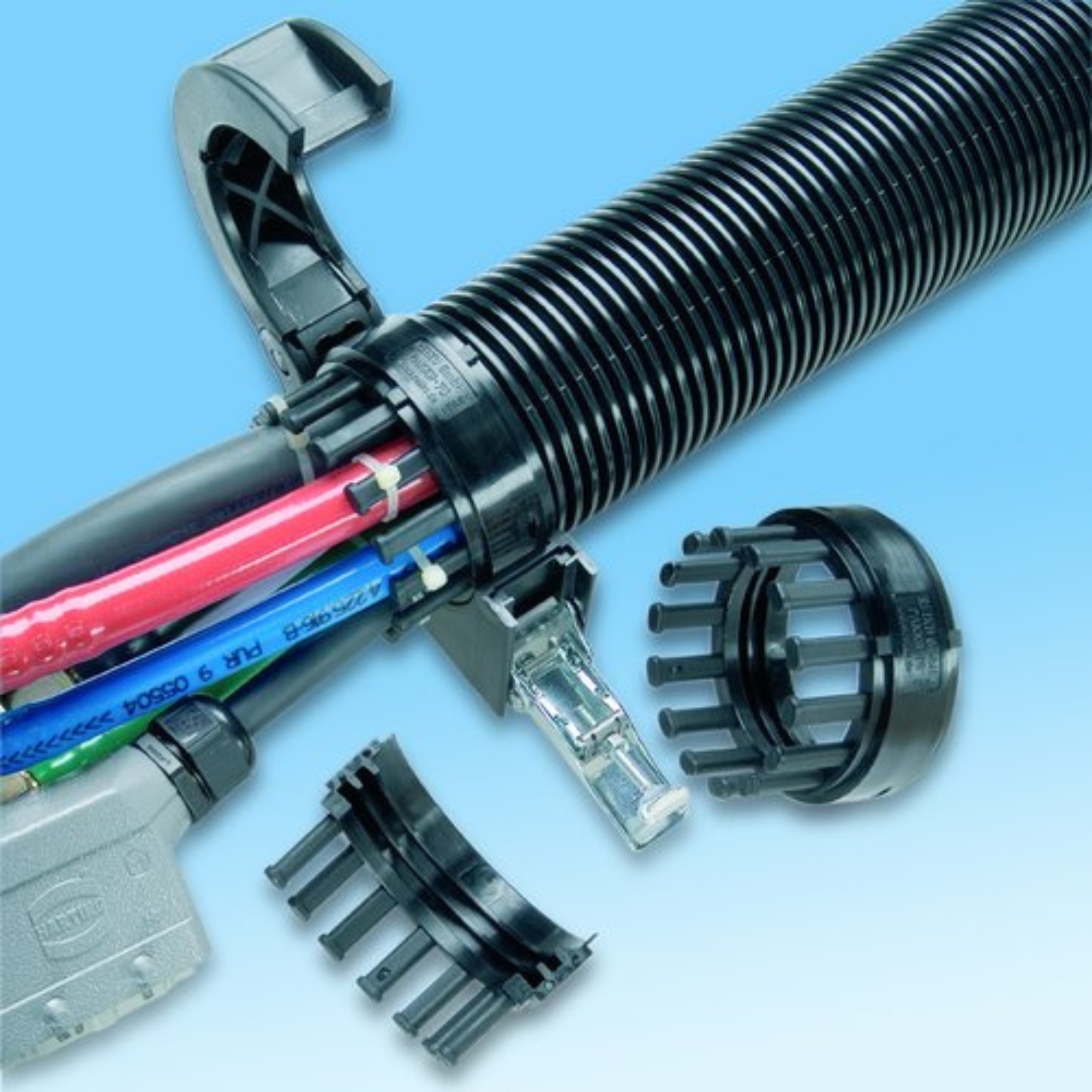

Gripping Clamps are applied to retain conduit via Jaws. The Jaws have to be selected acc. to there function. Middle and Combi Jaws are used to fix a conduit or to combine two different kinds of conduit qualities as well as for combination of one conduit with one cable star. Sliding Jaws are used to lead a conduit loosely.

Acc. to the nominal width the Gripping Clamps are closed by metal, screw or plastic closure.

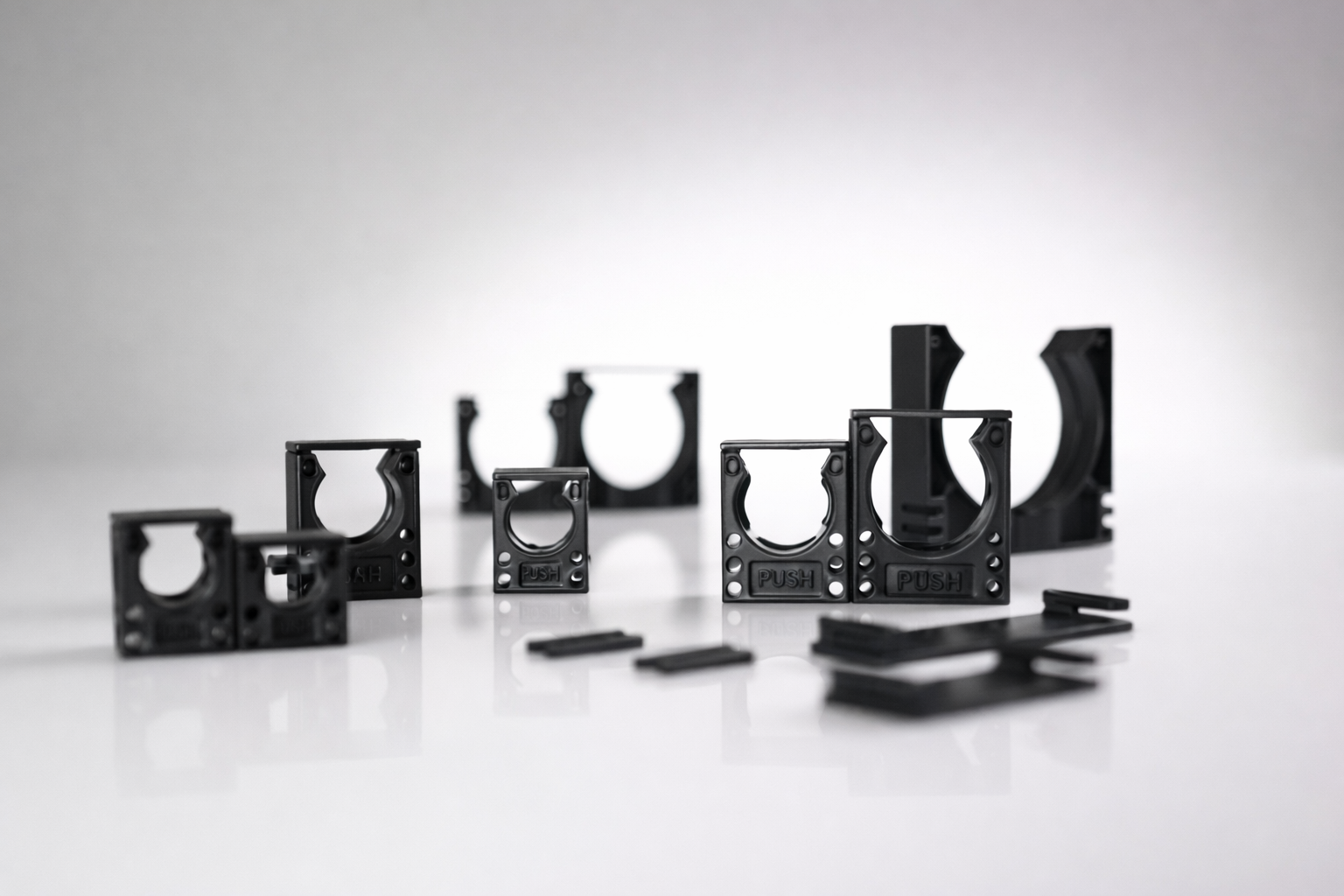

Strengthened System Support

Holders, System Supports or the Strengthened System Supports are simple variants to fasten corrugated tubes. The corrugated tubing is inserted into the supports without tools. With the Standard System Support, the lid can also be used for securing.

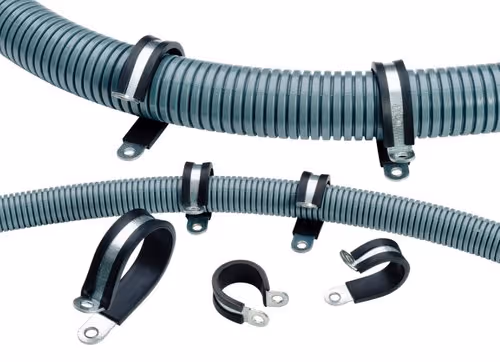

Tube Clamps

Tube Clamps to install conduits made of galvanized steel with elastomer profile EPDM, halogenfree.

Fittings

Straight connector
90° elbow connector
45° elbow connector
Connector with female thread

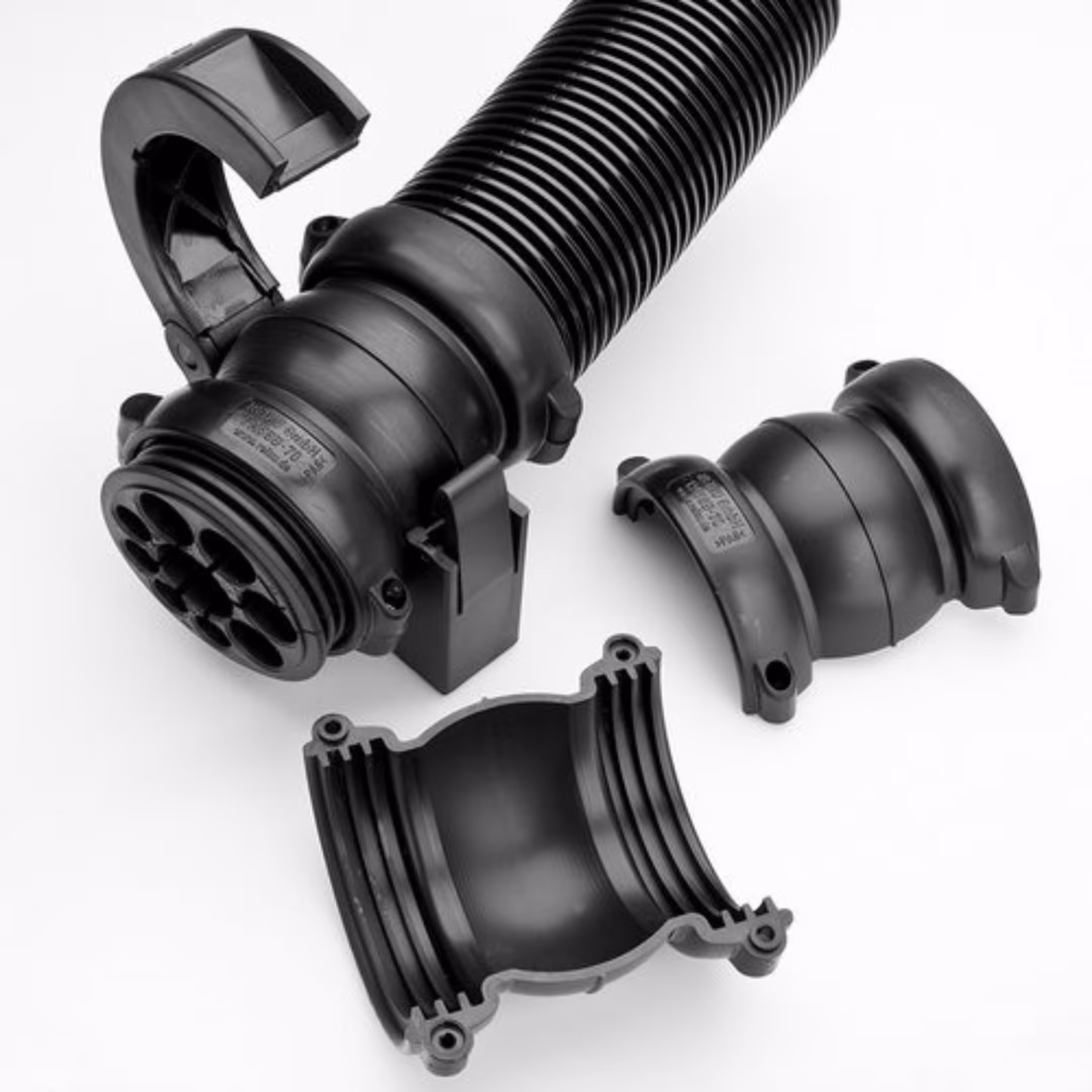

Joint for transmitter
90° elbow flange, smooth tube adapter
Push-in tube connector
Full metal connector
REIKU EMC connector
REIKU Distributor
Connector with UNI® multiple feed
Connector with strain relief
BUNDLING & PROTECTING

System Sheathings

REIKU System Sheathings with zip closure ensure nearly every applications the perfect solution - irregardless of whether the cable lines are pre-assembled or not.

4 types of closures in combination with 18 standard nominal diameters (from 9mm to 120mm) and 8 types of materials display a limitless variety. In the foreground, we see to protection against mechanical and chemical influences and HF-shielding.

System Sheathings Catalog

DOWNLOAD
PROTECTION MATERIALS

Heat Protection

REIKU heat protection material GLASO and GLASIL can be applied in areas where wirings and components need to be protected against high temperatures (till 350 °C and also till 650 °C).

Depending on application, we supply the material as fabrics, strips, tubes (reel length or cut length) or shapes according to outline. Processing by REIKU ensures a solution for every application. Opening and closing of the heat protection material during assembly is possible by special grip closure (on GLASO and GLASIL) and also by press-studs (only on GLASO).

Heat Protection Catalog

DOWNLOAD
FINE BRAID

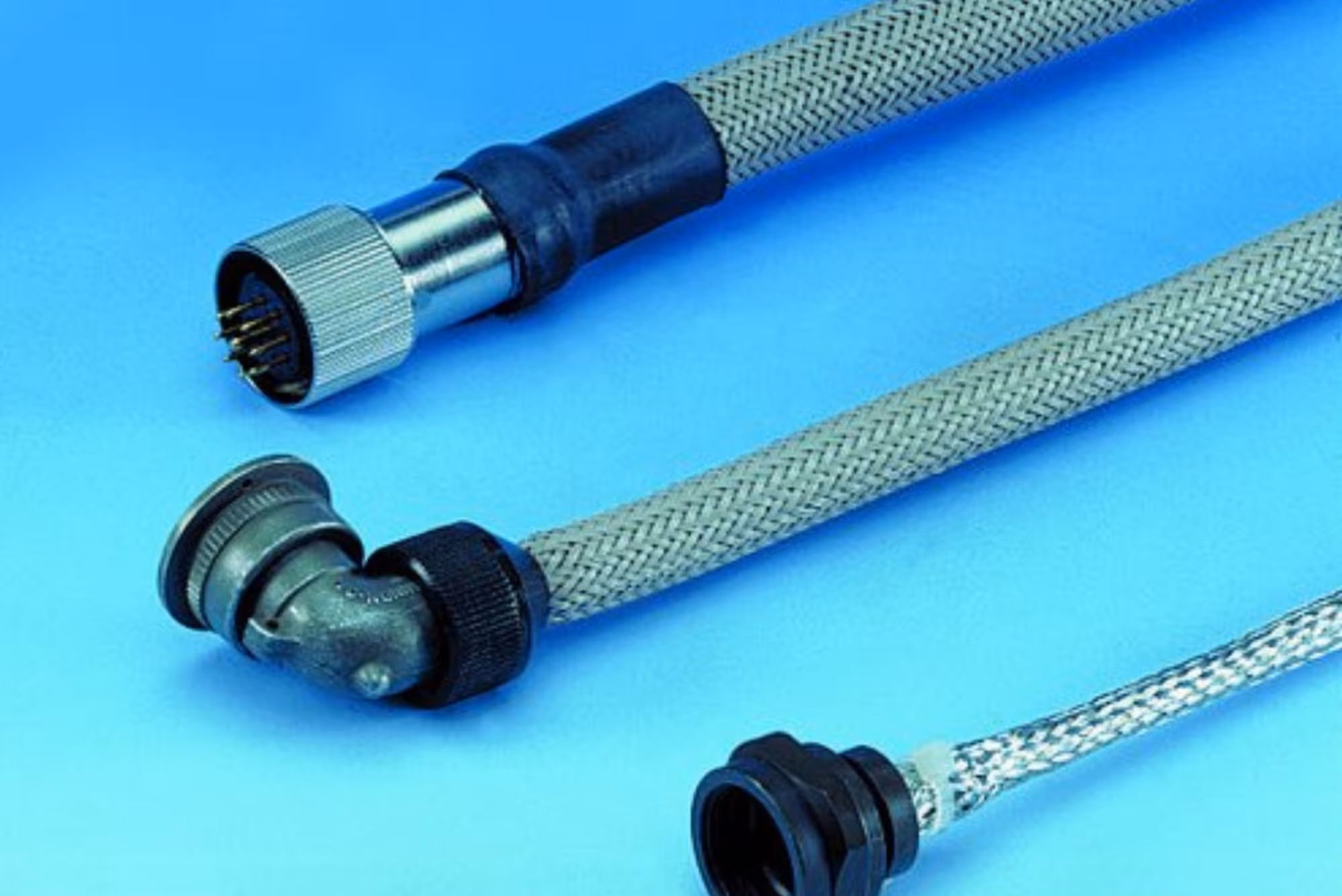

Fine Braided Tubing

REIKU fine braided tubings offer a fast and neat solution for protection of cables which need to be pliable during mounting or should remain flexible.

This robust braid can be bent and twisted in all directions and can be expanded twice its jammed size or stretched size. Depending on its material property, we consider features such as environmental friendly, chemical resistance, economic or screening (to 60 dB) a must for us.).

Fine Braid Catalog

DOWNLOAD
